Details
Operating Features
| Parameter | Value |
|---|---|
Accuracy (% Error) (Max) (%) | 5 |
Ambient Operating Temperature (Min to Max) (℃) | -40 to 125 |
Level of Integration | integrated |
Output Type | analog |
Porting | dual side ports |
| Parameter | Value |
|---|---|
Pressure Measurement Type | differential |
Pressure Rating (MAX) (psi) | 1 |
Supply Voltage [min] (V) | 2.7 |
Supply Voltage [max] (V) | 3.3 |
Supply Voltage [typ] (V) | 3 |
Environmental
| Part/12NC | PbFree | EU RoHS | Halogen Free | RHF Indicator | 2nd Level Interconnect | REACH SVHC | Weight (mg) |
|---|---|---|---|---|---|---|---|
MP3V5010DP(935317118117) | Yes | Yes | Yes |  | e4 | REACH SVHC | 2222.9 |
Quality
| Part/12NC | Safe Assure Functional Safety | Peak Package Body Temperature (PPT) (C°) | Maximum Time at Peak Temperatures (s) | ||
|---|---|---|---|---|---|
| Lead Free Soldering | Lead Free Soldering | ||||
MP3V5010DP (935317118117) | No | 245 | 30 | ||
Shipping
| Part/12NC | Harmonized Tariff (US)Disclaimer | Export Control Classification Number (US) |
|---|---|---|
MP3V5010DP (935317118117) | 854239 | EAR99 |
More about MPXx5010

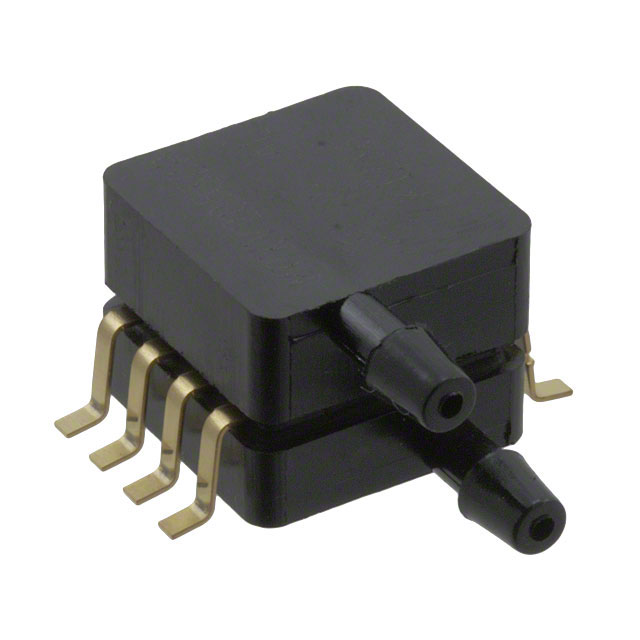

The NXP MPX5010/MPXV5010G/MP3V5010 series of piezoresistive transducers are state-of-the-art monolithic silicon pressure sensors designed for a wide range of applications, particularly those employing a MCU or MPU with A/D inputs. This transducer combines advanced micromachining techniques, thin-film metallization and bipolar processing to provide an accurate high-level analog output signal that is proportional to applied pressure.
